• 360-Degree Camera
• 5G Modem
• B&O Sound System
• Blis W/Cross-Traffic Alert
• Electrochromic Mirror
• Ford App
• Intelligent Access W/Push Button Start
• Mono Beam Coil Spring Frt Suspension W/Stab Bar
• Pre-Collision Assist W/Aeb
• Rear Parking Sensors
• Reverse Brake Assist
• Sync4 W/12" Screen

• 12" Cluster Display
• 1Touch Up/Down Dr/Pass Win
• Ambient Lighting-Fixed
• Dual-Zone Electronic Auto Climate Control
• Heated Steering Wheel
• Htd/Ventilated Frt Seats
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows
• Pwr Driver And Pass Seat
• Tilt/Telescope Str Column

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Led Ctr High Mnt Stop Lamp
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

Lariat® F-350® DRW (628A)

Discount – Lariat® Premium Package with Black Appearance Package

5th Wheel/Gooseneck Hitch Prep Package

Heavy-Service Front Suspension Package

Discount – Tremor® Off-Road Package with Chrome Package

CNG/Propaine Gaseous Enigne Prep Package

Lariat® Premium Package

Lariat® Ultimate Package

Ford Connectivity Package (1-year included)

360-Degree Camera Package

FX4 Off-Road Package

Camper Package

SiriusXM with 360L

Ford Security Package (1-year included)

Discount – Tremor® Off-Road Package with Lariat® Premium Package

Fixed 10,000 lb. GVWR Package

Chrome Package

• ORDER CODE 628A

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 250 & 0
• Maximum Alternator Capacity (amps): 190
• Weight Information
• Base Curb Weight (lbs): 8191
• Base Curb Weight (lbs): 7342
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9900
• Curb Weight - Front (lbs): 4081
• Curb Weight - Rear (lbs): 3261
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Combined Wt Rating (lbs): 25700
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1790
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17600
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4400
• Maximum Trailering Capacity (lbs): 17900
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 9900
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 10400
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 11640
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 17 X 6.5
• Rear Wheel Size (in): 17 X 6.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Forged Aluminum
• Rear Wheel Material: Forged Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 57.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 48
• Exterior Dimensions
• Wheelbase (in): 176
• Length, Overall (in): 266.2
• Width, Max w/o mirrors (in): 96
• Height, Overall (in): 81
• Overhang, Front (in): 38.2
• Cab to Axle (in): 56.1
• Ground to Top of Load Floor (in): 36.9
• Ground Clearance, Front (in): 7.8
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.1
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 78.5
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

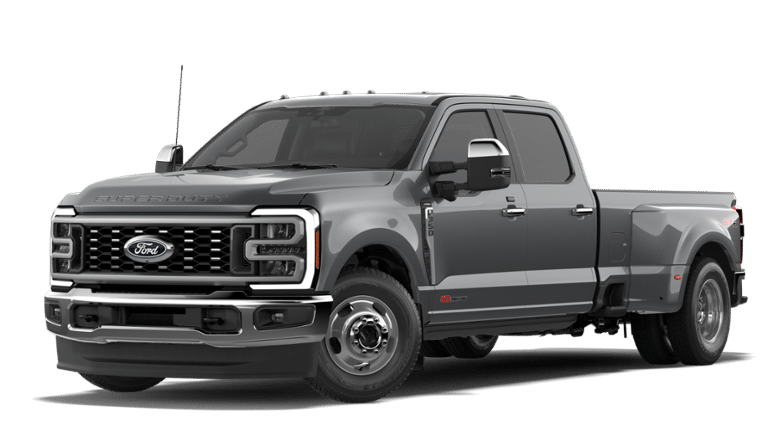

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: SD Crew Cab
• Body Code: T
